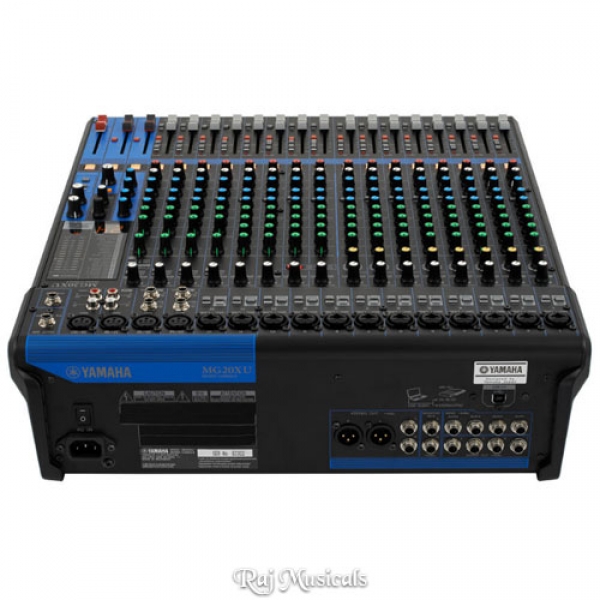

The Yamaha MG20XU//E is a 20-channel analog mixer that combines professional-grade features with intuitive operation, making it suitable for a wide range of audio mixing applications. Designed for both live sound reinforcement and recording environments, it offers a comprehensive set of tools and functionalities to meet the needs of musicians, engineers, and content creators.At its core, the MG20XU//E features Yamaha’s acclaimed D-PRE microphone preamps, known for their natural sound and low-noise operation.

• Channels:

  • Input Channels: 20 (16 mono mic/line inputs + 4 stereo line inputs)
  • Microphone Preamps: Yamaha D-PRE with inverted Darlington circuit design for high-quality, low-noise sound.

• Built-in Effects:

  • SPX Digital Effects: Includes a variety of high-quality digital effects such as reverb, delay, chorus, flanger, and more.

• 1-Knob Compressors:

  • On Channels 1-12: Provides easy-to-use dynamics control with a single knob, optimizing vocals and instruments.

• Equalization:

  • 3-Band EQ: Adjustable high, mid, and low frequencies on all channels for precise sound shaping.

• USB Audio Interface:

  • USB Connectivity: Allows for bi-directional recording and playback with a computer or mobile device.
  • 24-bit/192kHz: High-resolution audio support ensures excellent sound quality in digital recordings.

• Master Section:

  • Master EQ: Provides overall equalization for the main mix.
  • Master Compression: Helps to refine and control the overall dynamics of the mix.

• Auxiliary Sends:

  • Auxiliary Sends: Four aux sends for flexible monitoring and effects routing.

• Intuitive Controls:

  • Illuminated Knobs: Enhances visibility in low-light environments.
  • Level Meters: LED level metering for visual monitoring of signal levels.

• Durability and Design:

  • Metal Chassis: Rugged construction ensures reliability in demanding live performance environments.
  • Compact and Portable: Suitable for both fixed installations and portable setups.

• Additional Features:

  • Phantom Power: +48V phantom power for condenser microphones.
  • Pan Control: Pan adjustment on mono channels for stereo imaging.
  • Monitor Mix: Allows separate control of monitor mixes for performers.

Type: Analog Mixing Console
Channels: 20 (16 Mono + 4 Stereo)
Input Channels:
Microphone Inputs: 16 x XLR-1/4″ / 6.35 mm combo (Mono)
Line Inputs: 4 x 1/4″ / 6.35 mm TRS (Stereo)
Phantom Power: +48V (switchable)
Output Channels:
Main Outputs: 2 x XLR
Aux Sends: 4 x 1/4″ / 6.35 mm TRS (Aux 1-4)
Monitor Outputs: 2 x 1/4″ / 6.35 mm TRS
Control and Functionality:
EQ (Mono Channels): 3-band (High, Mid, Low), ±15 dB
1-Knob Compressors (Channels 1-12): Threshold and Ratio controlled via single knob
Digital Effects: SPX with 24 programs (Reverb, Delay, Chorus, etc.)
Channel Inserts: 8 x 1/4″ / 6.35 mm TRS (Mono Inputs)
Channel EQ: High Pass Filter (Mono Channels), 80 Hz, 12 dB/octave
